Frames, ticks, titles, and labels

Setting frame, ticks, titles, and labels is handled by the frame parameter that many plotting methods of the pygmt.Figure class accept. This tutorial focuses on setting the frame parameter using the pygmt.params.Axis and pygmt.params.Frame classes.

import pygmt
from pygmt.params import Axis, Frame

Plot frame

By default, PyGMT does not add a frame to your plot. For example, we can plot the coastlines of the world with a Mercator projection:

fig = pygmt.Figure()

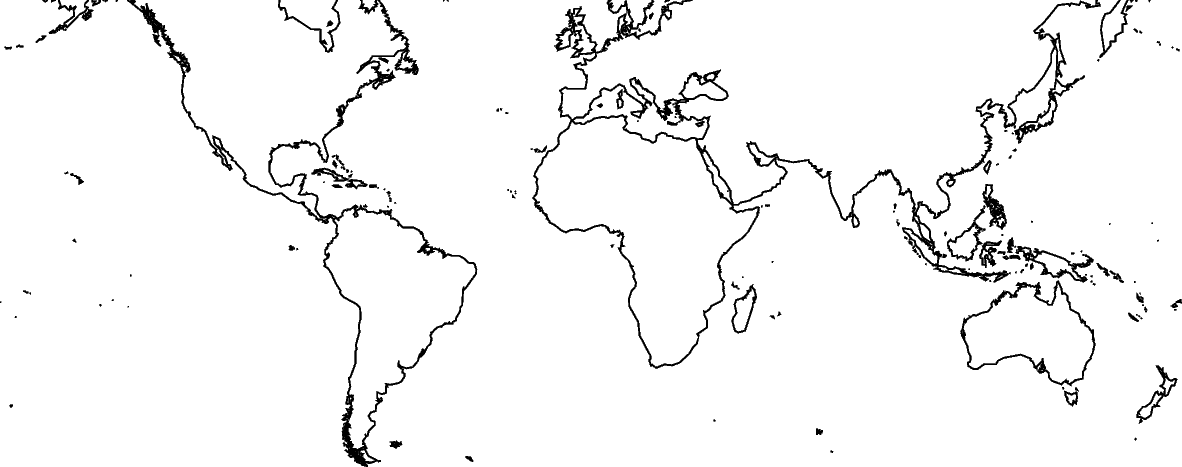

fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M15c")
fig.show()

To add the default GMT frame style to the plot, use frame=True in pygmt.Figure.basemap or another plotting method that accepts a frame parameter:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M15c")

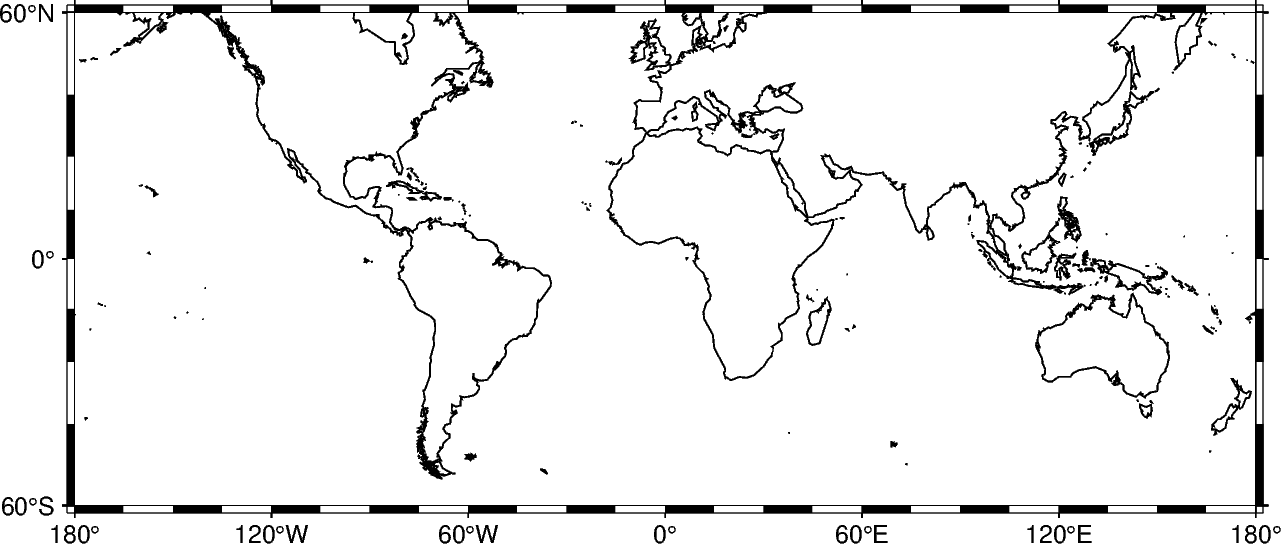

fig.basemap(frame=True)
fig.show()

Annotations, tick marks and grid lines

The default frame style includes tick labels (called annotations in GMT) and tick marks at intervals determined by GMT, but doesn’t include grid lines. To control the presence and intervals of annotations, tick marks, and grid lines, you can use the pygmt.params.Axis class. The annot, tick, and grid attributes of pygmt.params.Axis control the presence and intervals of annotations, tick marks, and grid lines, respectively. Setting them to True adds them at intervals determined by GMT:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M15c")

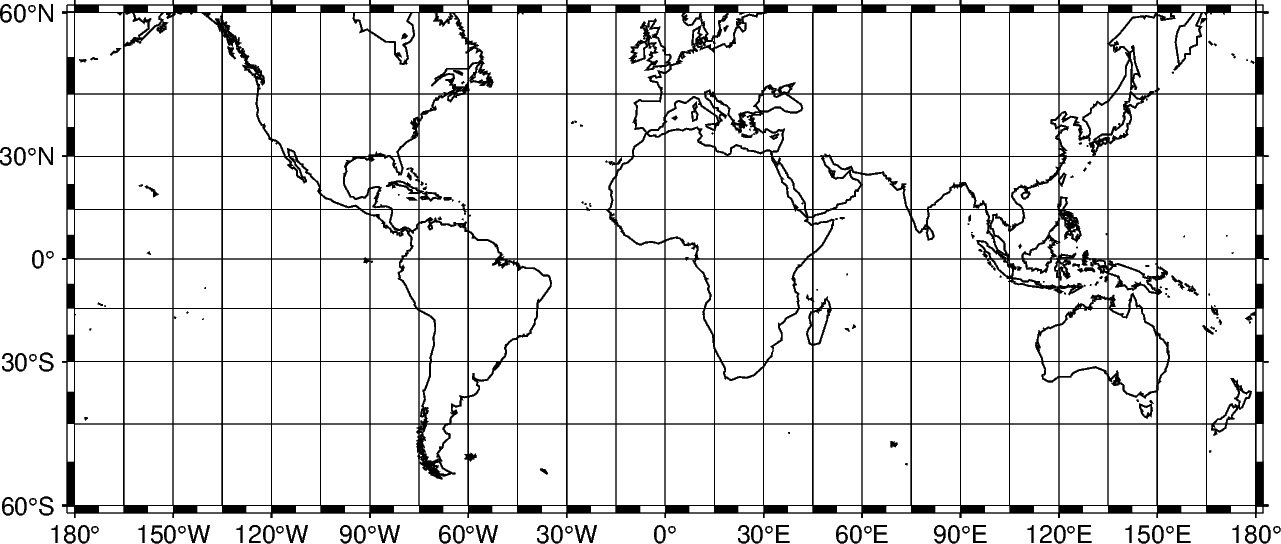

fig.basemap(frame=Axis(annot=True, tick=True, grid=True))
fig.show()

To set specific intervals, pass values to annot, tick, and grid. In the example below, the annotation, tick, and gridline intervals are set to 30, 7.5, and 15 degrees, respectively.

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M15c")
fig.basemap(frame=Axis(annot=30, tick=7.5, grid=15))
fig.show()

Title

The pygmt.params.Frame class lets us configure frame-wide settings such as titles. Combine it with an Axis object to keep automatic annotations.

fig = pygmt.Figure()
# region="TT" specifies Trinidad and Tobago using the ISO country code
fig.coast(shorelines="1/0.5p", region="TT", projection="M15c")

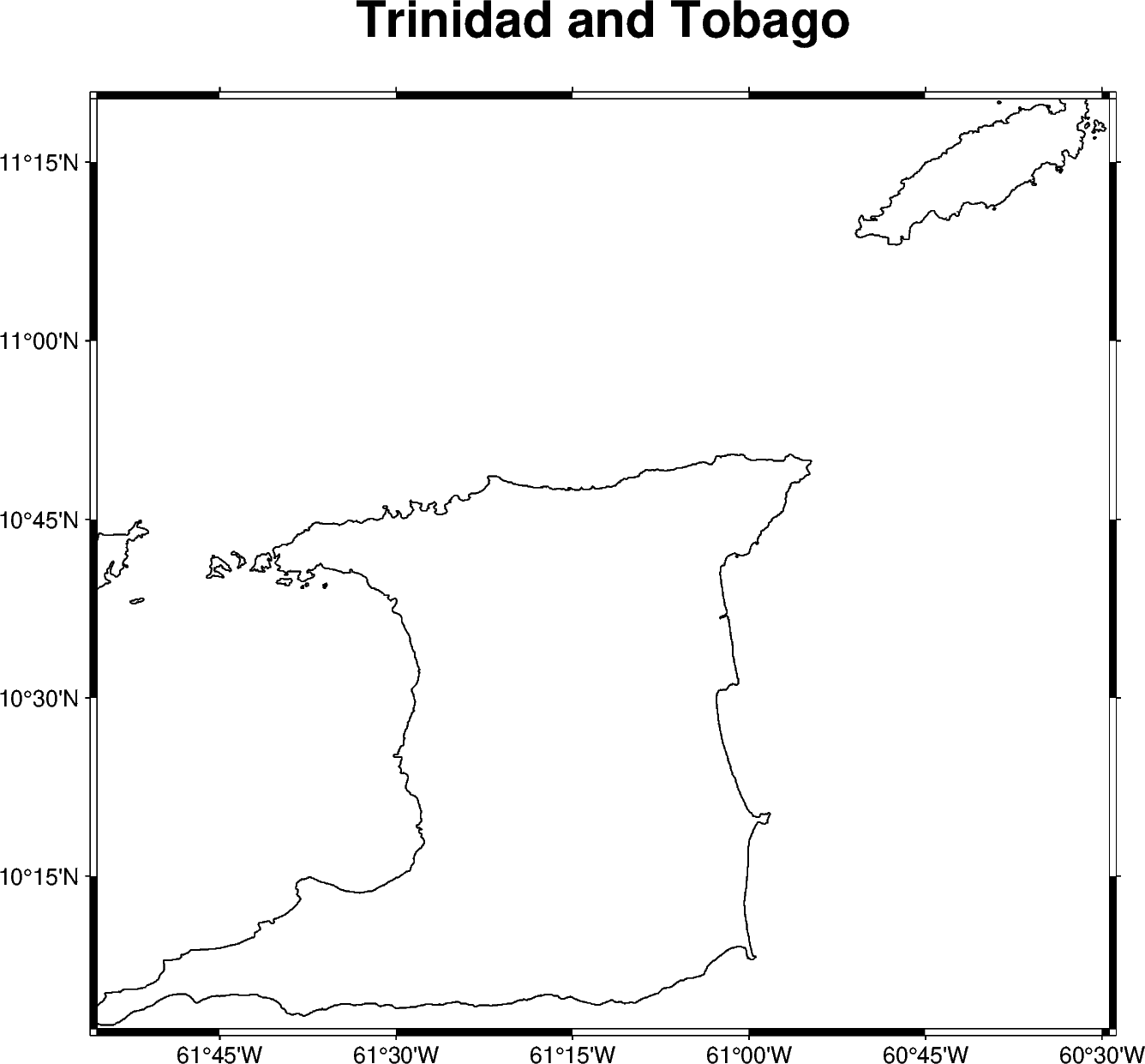

fig.basemap(frame=Frame(title="Trinidad and Tobago", axis=Axis(annot=True)))
fig.show()

Axis labels

Axis labels, in GMT simply called labels, can be set through the xaxis and yaxis parameters of Frame. The map boundaries (or plot axes) are named as West/west/left (W, w, l), South/south/bottom (S, s, b), North/north/top (N, n, t), and East/east/right (E, e, r) sides of a figure. Uppercase letters (W, S, N, E) draw axes with annotations and tick marks, lowercase letters (w, s, n, e) draw axes with tick marks only, and l, b, t, r draw plain axis lines without ticks or annotations. A frame like Frame(axes="WS") draws annotated west and south axes only.

The example below uses a Cartesian projection, as GMT does not allow labels to be set for geographic maps.

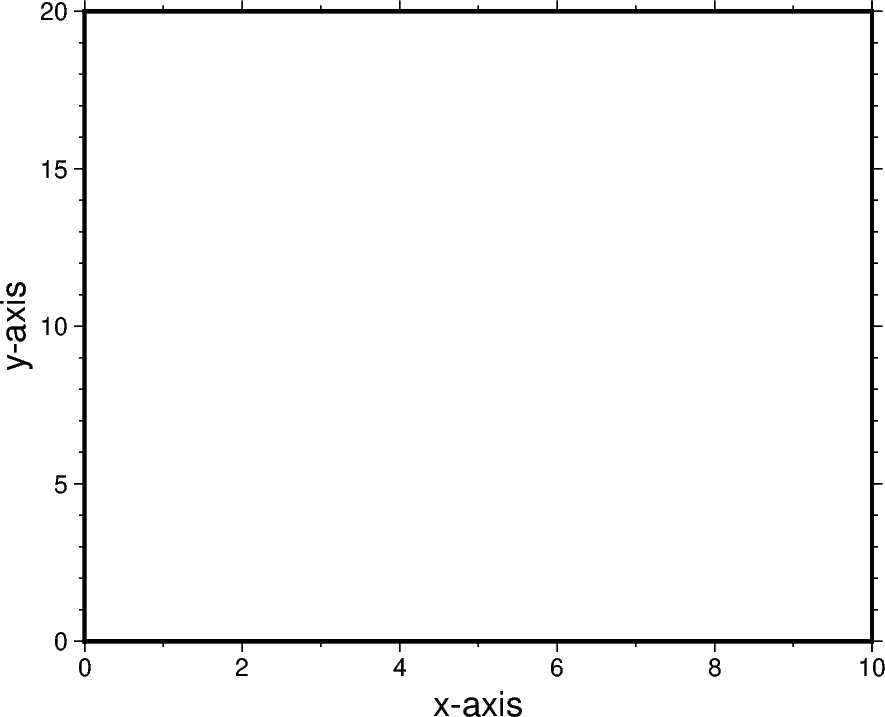

fig = pygmt.Figure()
fig.basemap(
    region=[0, 10, 0, 20],
    projection="X10c/8c",
    # Plot axis with tick marks, annotations, and labels on the West and South axes.
    # Plot axis with tick marks on the north and east axes
    frame=Frame(
        axes="WSne",
        xaxis=Axis(annot=True, tick=True, label="x-axis"),
        yaxis=Axis(annot=True, tick=True, label="y-axis"),
    ),
)
fig.show()
